Brand:Into-sea

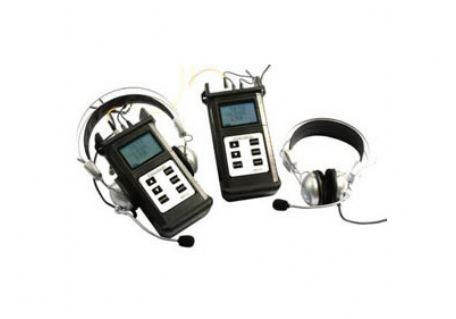

LTS-22 Optical Talk Set is an intelligent and efficient instrument that combines in one set the
functions of both a digital optical phone and a stabilized light source. It is widely used in operations
of installation, optical testing, maintenance and fiber attenuation value testing in data network,
CATV and Telecommunication network. The LTS-22 Talk Set can carry out fullduplex communication with high quality connection and not be affected
by distance.
LTS-22 Optical Talk Set Features
Full-duplex digital communication with high quality conversation connection and low background noise.
Together with Optical Clip-on Coupler, enables on line communications available.
Combining functions of both a digital optical phone call and a stabilized light source.
Large LCD display with backlight.
Low battery power indication
LTS-22 Optical Talk Set Applications
Maintenance in Telecom.
Maintenance CATV.
Fiber Optic Lab Testing.
Other Fiber Optic Measurements.
LTS-22 Optical Talk Set Specifications
|
Type |
LTS-22 |
|
Wavelength(nm) |
1310/1550 |
|
Emitter Type |
FP-LD |
|
Transmission Distance |
≥80km |
|
Dynamic Range |
40dB |
|
Output Power |
-5~-7dBm(9/125um), CW or 2KHz, 1KHz, 270Hz Modulation |
|
Output Stability
|
±0.1dB/±0.25dB(1/8hrs) CW |
|
Power Supply
|
RechargeableBattery+ Power Supply Adaptor |
|
Battery Operating Time |
5 hours |
|
Optical Connector
|
FC/PC |
|
Operating Temperature(℃) |
-10 ~ +60 |
|
Storage Temperature(℃) |
-25 ~ +70 |
|
Operating Temperature(℃) |
-10－+60 |
|
Dimension (mm) |
215X115X55 |
|
Weight (g) |
520 |
LTS-22 Optical Talk Set Standard Packages
|
MODEL |
INCLUDES |
|
LTS-22 |
LTS-22 Optical Talk Set (pair), Protective Rubber Boot, Headset, Rechargeable battery, Power Supply Adaptor, User Manual, Cotton swabs and soft carrying case. |
