Brand：shinewaytech

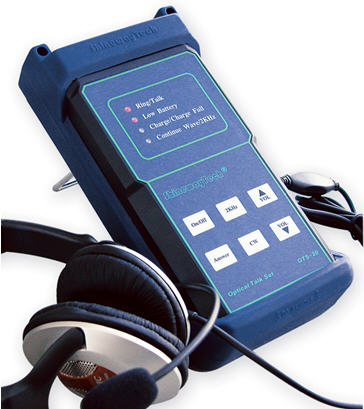

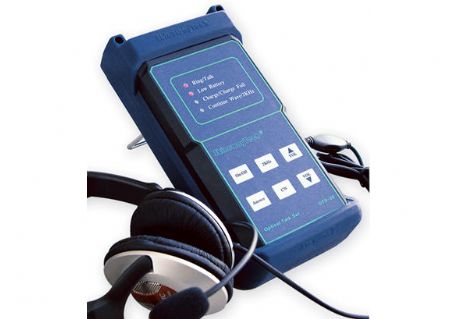

OTS-20 Multifunction Optical Talk Set enables clear and long distance telephony on single
optical fiber. Featuring integrated laser source and optical power meter for loss test, OTS-20 is a reliable toolset for tough environments.
OTS-20 Multifunctional Optical Talk Set Features:
· Full duplex multiparty call on single fiber
· High-quality voice signal
· Optional nondestructive Clip-on Coupler:
· Direct online communication
· 10 hours continuous operation/Auto off
· Handheld, damp-dust-shock proof
· CE FCC FDA certificates
OTS-20 Multifunctional Optical Talk Set Specifications
|
Model |
OTS-20 |
|
|
A |
B |
|
|
Display |
LED |
|
|
Talk Set Module |
||
|
Wavelength (±20nm) |
1310 |
1550 |
|
Dynamic Range |
40dB |
|
|
Effective Range (Km) |
110 |
160 |
|
Emitter Type |
FP-LD |
|
|
Spectrum Width |
≤5nm |
|
|
Laser Source Module |
||
|
Wavelength (±20nm) |
1310 |
1550 |
|
Output Power (dBm) |
≥-5 |
|
|
Modulation Frequencies |
270, 1K, 2K Hz |
|
|
Stability |
±0.05 dB/15min; ±0.15dB/8hr |
|
|
General Specifications |
||
|
Connector |
FC (Interchangeable SC, ST) |
|
|
Power Supply |
NiMH Battery (1600mA/h) / AC Adapter |
|
|
Battery Life |
10 hrs continuous operation/16 hrs standby |
|
|
Operating Temperature |
-20℃ ~ 50℃ |
|
|
Storage Temperature |
-40°C to 70°C |
|
|
Relative Humidity |
0 to 95%(non-condensing) |
|
|
Weight |
600g |
|
|
Dimensions (H×W×T) |
196×100×44mm |
|
* Specifications subject to change without notice
OTS-20 Multifunctional Optical Talk Set Ordering Information
* Optical Talk Set is purchased in pair. Two units are required for communication.
