Model：OPM-501/OPM-502

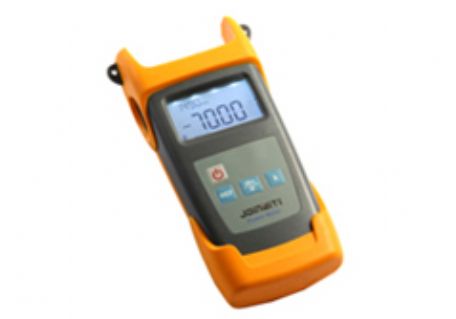

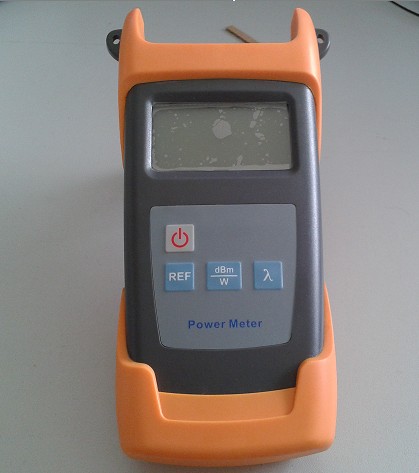

OPM-500 optical power meter
Is a handheld optical power meter, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. It features ingenious appearance, a wide range of power measurement, high accuracy, an user selfcalibration function and a
reference power level storage.
OPM-500 optical power meter Features
Reference power level storage(Ref Setting)
User self-calibration function
Comfortable LCD display and backlight LCD display supports
night operation.
Power measurements in dBm or mw and insertion loss in dB
Optional 10 minutes Auto-off function
AA alkaline batteries can last more than 140 hours, AC adaptor also available
Low battery power indication
OPM-500 optical power meter Applications
Maintenance in Telecom
Maintenance CATV
Test Lab of Optical Fibers
Other Fiber Optic Measurements
OPM-500 optical power meter Specifications
|
|
||
|
MODEL |
OPM-501 |
OPM-502 |
|
Wavelength(nm) |
800~1700nm |
|
|
Detector Type |
InGaAs |
|
|
Detector Size |
? 1.0mm |
|
|
Measurement Range (dBm) |
-70~+10 |
-50~+30 |
|
Uncertainty |
±5% |
|
|
Calibrated Wavelength(nm) |
850,1300,1310,1490,1550,1625 |
|
|
Resolution(dB) |
0.01 |
|
|
Optical Connector |
FC(interchangeable SC,ST) / as well as 2.5mm universal |
|
|
Power Supply |
AlkalineBattery(3 AA 1.5V batteries); AC Adaptor(9V) |
|
|
Battery Operating Time |
140 h with 1.5VBattery(3pcs) |
|
|
Operating Temperature(℃) |
-10 ~ +60 |
|
|
Storage Temperature(℃) |
-25 ~ +70 |
|
|
Relative Humidity |
0 to 95% (non-condensing) |
|
|
Dimension(mm) |
190X100X50 |
|
|
Weight(g) |
370 |
|
OPM-500 optical power meter Standard Packages
OPM500 Optical Power Meter, 3pcs 1.5V batteries, AC Adaptor, User Manual, Cotton swabs and Soft carrying case.
