Model:OPM-301/OPM-302

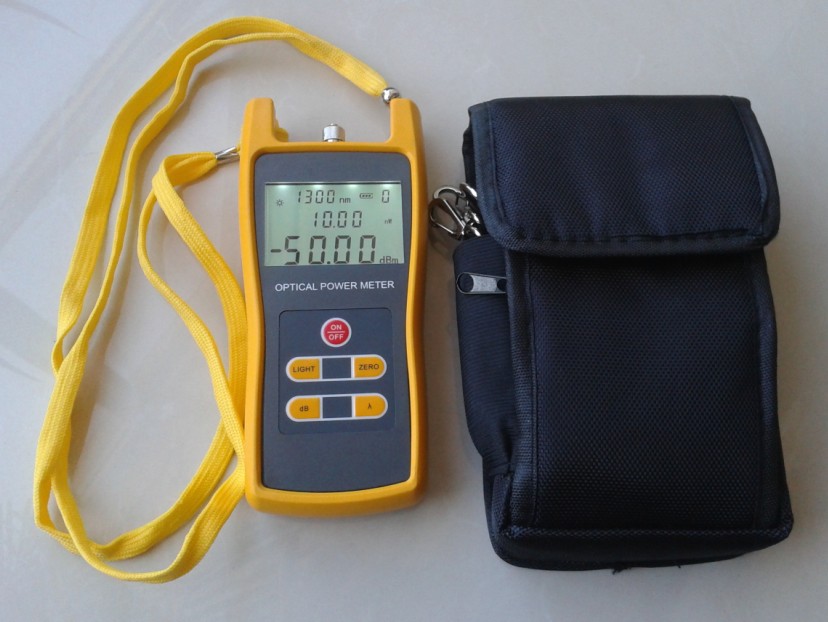

OPM-300 handheld optical power meter is a compact and an easy-to-use testing instrument
for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. It features ingenious appearance,
wide range of power measurement, high accuracy and user self-calibration function
with high performance-to-price ratio.
OPM-300 optical power meter Features
User self calibration function
Comfortable LCD display and optional backlight LCD display supports
night operation
Power measurements in dBm or mw and insertion loss in dB
Low battery consumption, more than 240 hours continual operation time
for three 1.5V alkaline batteries
Optional 10 minutes Auto-off function
Applications
Maintenance in Telecom
Maintenance CATV
Test Lab of optical fibers
Other Fiber Optic Measurements
OPM-300 optical power meter Specifications
|
|
||
|
Type |
OPM-301 |
OPM-302 |
|
Wavelength(nm) |
800~1700nm |
|
|
Detector |
InGaAs |
|
|
Measurement Range (dBm) |
-70~+6 |
-50~+26 |
|
Uncertainty |
±5% |
|
|
Calibrated Wavelength(nm) |
850,980,1300,1310,1490,1550 |
|
|
Resolution(dB) |
0.01 |
|
|
Optical Connector |
FC(interchangeable SC,ST) / as well as 2.5mm universal |
|
|
Power Supply |
AlkalineBattery(3 AA 1.5V batteries) |
|
|
Battery Operating Time |
240 h with 1.5VBattery(3) |
|
|
Operating Temperature(℃) |
-10 ~ +60 |
|
|
Storage Temperature(℃) |
-25 ~ +70 |
|
|
Relative Humidity |
0 to 95% (non-condensing) |
|
|
Dimension(mm) |
175x82x33 |
|
|
Weight(g) |
310 |
|
OPM-300 optical power meter Standard Packages

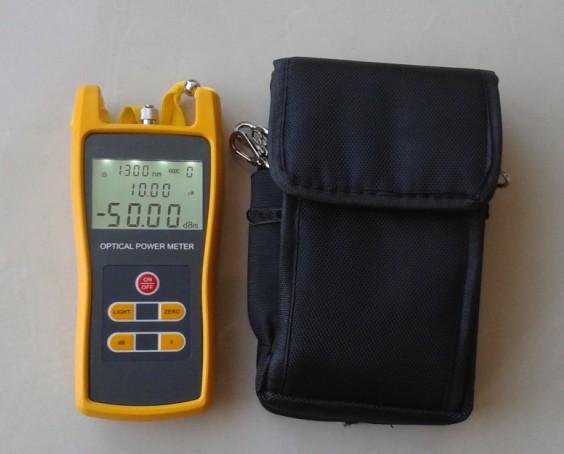

OPM-300 Optical Power Meter, Protective Rubber Boot, 3pcs 1.5V batteries, User Manual,
Cotton swabs and Soft carrying case.
