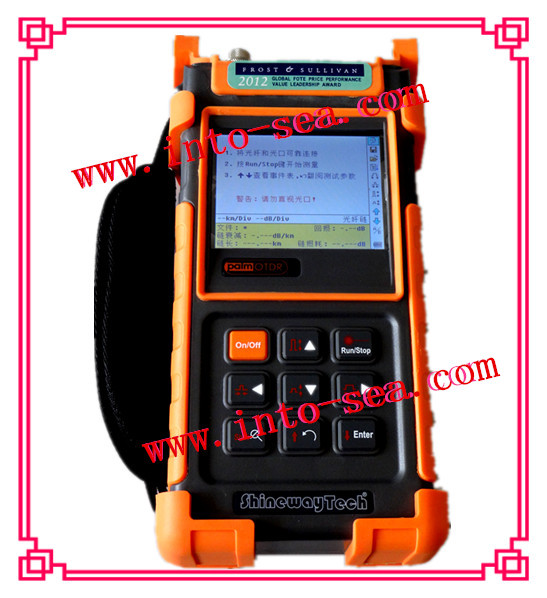

The compact palmOTDR now offers even more testing capacities, flexibility and value with combination of
850/1300/1310/1490/1550/1625/1650nm (Mono/double/triple wavelength) OTDR, 1310/1490/1550nm
PON Power Meter, Stabilized Laser Source and VFL. The OTDR wavelengths cover the applications of regular
end-to-end fiber characterization (1310/1550nm), premise/enterprise LAN testing (850/1300nm),
FTTx fiber link construction verification (1490nm) and PON live fiber troubleshooting
(1625/1650nm with filter). The integrated PON Power Meter can perform in-service testing of all PON signals (1310/1490/1550nm) on any spot of the network
featuring pass-through design and burst mode support.
palmOTDR is your ultimate solution to meet various testing requirements of entire fiber network.
Features:
u Comprehensive fiber applications, ideal for LAN/WAN/FTTx certification & trouble-shooting:SM: 1310/1490/1550, 1625/1650nm (with filter), up to 45dBMM: 850/1300nm, 21/24dB
u Fault locating, fiber length/loss measurement, connector/ splice/ splitter/ macro bend/fiber-end detection
u Built-in PON Power Meter for Triple-play live measurement
u Optional Stabilized Laser Source, SM/MM Power Meter and VFL
u FTTx in-service testing/ Testing through splitter: (1625/1650nm with filter)
u Splitter & fiber-end identifiable
u Auto/Manual(2-point/5-point)/Averaging/Real-time test
u Pass/Fail assessment and ORL test function
u Quick start: <5 seconds
u Perfect user interface, handheld & lightweight (1kg)
u Hotkeys: Easiest operation in the world, push-and-test
u 1000 test records storage
u Bellcore file format (.sor)
u PC software for batch data processing
u USB/RS-232 data interface, driver-free
u Multiple languages: EN/DE/IT/FR/ES/PT/RU/KR/VN/CN etc.
u 8 hrs continuous operation/20 hrs standby
u Dust-shock proof (2mdrop test)
u CE, FCC, FDA certificates
General Specifications
|
Model (1) |
Wavelength (±20nm) |
Dynamic Range(2) |
Event DeadZone(m)(3) |
Attenuation DeadZone(m)(3) |
|
palmOTDR-M20AE |
850/1300 |
21/24dB |
1.8 |
8 |
|
palmOTDR-S20AE+ |
1310/1550 |
32/30dB |
1.8 |
8 |
|
palmOTDR-S20BE |
1310/1550 |
35/34dB |
1.8 |
8 |
|
palmOTDR-S20C/N |
1310/1550 |
40/38dB |
1.5 |
8 |
|
palmOTDR-S20D/N |
1310/1550 |
45/43dB |
1.5 |
8 |
|
palmOTDR-S20F |
1310/1550 |
50/48dB |
1.5 |
8 |
|
palmOTDR-S20C/P |
1310/1490/1550 |
38/37/37dB |
1.5 |
10 |
|
palmOTDR-S20C/X |
1310/1550/1625 |
38/37/37dB |
1.5 |
10 |
|
palmOTDR-S20C/E |
1310/1550/1650 |
38/37/37dB |
1.5 |
10 |
|
palmOTDR-P11C (w. PPM module) |
1625 |
37dB |
1.5 |
10 |
|
palmOTDR-P13C (w. PPM module) |
1650 |
37dB |
1.5 |
10 |
|
palmOTDR-P31C (w. PPM module) |
1310/1550/1625 |
38/37/37dB |
1.5 |
10 |
|
palmOTDR-P33C (w. PPM module) |
1310/1550/1650 |
38/37/37dB |
1.5 |
10 |
General Specifications
|
Selectable Range (Km) (4) |
0.1,0.3,0.5,1.3,2.5,5,10@850nm; 0.1,0.3,0.5,1.3,2.5,5,10,20,40,80@1300nm; 0.3,1.3,2.5,5,10,20,40,80,120,160,240@others |
|
Pulse Width (5) |
10ns,30ns,100ns,300ns,1μs@850nm; 10ns,30ns,100ns,300ns,1μs,2.5μs@1300nm; 5ns,10ns, 30ns,100ns, 300ns,1μs,2.5μs,10μs,20μs@others |
|
Averaging Time |
Quick, 15s, 30s, 1min, 2min, 3min |
|
Distance Measure Accuracy |
±(1m+ 5×10-5×distance + sampling space) |
|
Attenuation Detect Accuracy |
±0.05 dB/ dB |
|
Reflection Detect Accuracy |
±4 dB |
|
Data Storage |
1000 records |
|
Connectivity |
USB/RS-232 |
|
Connector |
FC/PC(Interchangeable SC, ST) |
|
Power Supply |
NiMHBattery/ AC Adapter |
|
Battery Life |
8 hrs continuous operation, 20 hrs standby (on one charge); recharging time < 4 hrs |
|
Operating Temperature |
-20℃ ~50℃ |
|
Storage Temperature |
-40℃ ~70℃ |
|
Relative Humidity |
0~95% (non-condensing) |
|
Weight |
1kg (2.2 lbs) |
|
Dimensions (H×W×T) |
220×110×70mm (8.7×4.3×2.7 inch) |
Functional Module Specifications
|
Optical Power Meter Module(9) |
|||
|
Calibrated Wavelength (nm) |
8.50E+22 |
||
|
Power Range (dBm) |
-70 ~ +6 (-60 ~ +6 @ 850nm) |
||
|
Detector Type |
InGaAs |
||
|
Display Resolution |
0.01dB |
||
|
Accuracy |
± 5% ± 0.01nW(±0.5dB@850nm) |
||
|
MOD Identification |
1K, 2K Hz |
||
|
PON Power Meter Module(10) |
|||
|
Calibrated Wavelength |
1310nm |
1490nm |
1550nm |
|
Measurement Range (dBm) |
-40 ~ +8 (Burst mode: -30 ~ +8) |
-40 ~ +8 |
-40 ~ +20 |
|
Spectral Passband (nm) |
1310±40 |
1490±10 |
1550±10 |
|
Power Uncertainty (dB) |
≤ 0.5 |
||
|
Display Resolution (dB) |
0.01 |
||
|
Insertion Loss (dB) |
≤ 1.5 |
||
|
Threshold |
60 user-definable threshold sets |
||
|
Data Storage |
1200 records |
||
Standard Package Includes:
Instrument, FC/PC connector, NiMH battery, TraceManager software CD,Data cable(USB) , AC adaptor, Soft carrying case, Warranty card, CE certificate, Certificate of calibration,
Quick reference guide.
