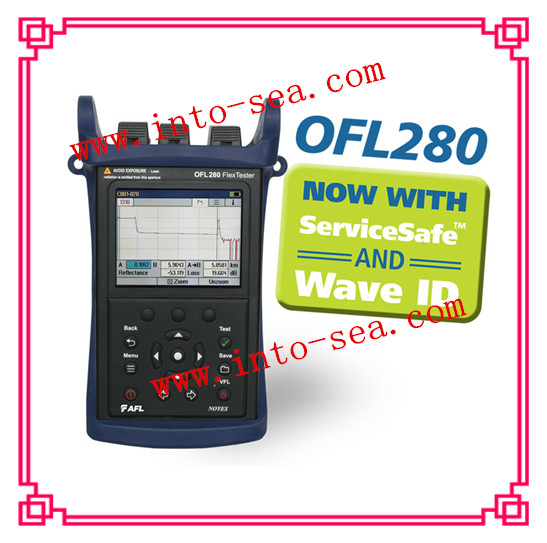

The Noyes OFL280 FlexTester offers an unmatched combination of fiber optic test functions, ease-of-use, portability, and value. All OFL280 FlexTester models include an integrated single-mode 1310/1550 nm OTDR with PON-optimized and standard test modes, optical power meter, 1310/1550 nm laser source, and visual fault locator.
For many users the two-wavelength OFL280-100 will provide the best balance of functionality and value. Testing at 1310 and 1550 nm is normally sufficient to certify point-to-point or FTTx PON fibers and allows the detection of macro bends. The three-wavelength OFL280-101 and OFL280-102 models add 1625 nm or 1490 nm respectively. Testing at 1625 nm allows testing of the L band. Testing at 1490 nm is required by some network operators to certify FTTx PONs. The filtered, three-wavelength OFL280-103 can certify dark fibers at 1310/1550 nm, fault-locate live FTTx fibers at 1625 nm, and measure FTTx power levels at 1490 and 1550 nm, all from a single test port.
The OFL280 FlexTester user interface provides operating modes suitable for a wide range of users and features a top-down menu structure that is both easy to learn and a pleasure to use.
OTDR test results may be saved as industry standard SOR files, which can be transferred to a PC for viewing, printing, and analysis using supplied Windows compatible software.
Features:
Rugged, hand-held and light weight (0.8 kg / 1.8 lb)
Standard OTDR, PON OTDR, live fiber OTDR, and FTTx PON meter all from the same test port
0.8 m event dead zone, 3.5 m attenuation dead zone
34 dB dynamic range
Fast Real Time OTDR mode
Internal storage (>1000 OTDR traces in .SOR format)
High-contrast display is clear and bright in any lighting condition, including direct sunlight
Transfer test results to a PC via USB
10-hour operation, fast charge, Li-Ion battery
Short power-on time (<5 sec)
Easy to learn and use
Specifications
|
OTDR |
|
|
Emitter Type |
Laser |
|
Safety Class |
Class I FDA 21 CFR 1040.10 and 1040.11, IEC 60825-1: 2007-03 |
|
Fiber Type |
Single-mode |
|
Available Wavelengths |
1310/1490/1550/1625 nm |
|
Wavelength Tolerance |
±20/±20/±20/±10 nm |
|
Dynamic Range (SNR=1) |
34/32/32/30 dB |
|
Event Dead Zone |
0.8 m |
|
Attenuation Dead Zone |
3.5 m |
|
Pulse Widths |
5, 10, 30, 100, 300 ns, 1, 3, 10 μs |
|
Range Settings |
250 m to 240 km |
|
Data Points |
Up to 30,000 |
|
Data Point Spacing |
5.0 cm (range < 1.5 km), Range/30,000 (range > 1.5 km) |
|
Group Index of Refraction (GIR) |
1.4000 to 1.6000 |
|
Distance Uncertainty (m) |
± (1 + 0.005% x distance + data point spacing) |
|
Trace File Format |
Bellcore GR-196 V.1.1 |
|
Trace File Storage Medium |
Internal memory (>1000 traces) |
|
Data Transfer to PC |
USB cable |
|
PON OTDR Modes |
FTTx Construction, FTTx Live Fiber |
|
Standard OTDR Modes |
Full Auto, Fast End Locate, Expert, Real Time |
|
GENERAL |
|
|
Size (in boot) |
20.1 x 13.0 x 5.3. cm (7.9 x 5.1 x 2.1 in) |
|
Weight |
0.8 kg (1.8 lb) |
|
Operational Temperature |
-10 °C to +50 °C, 0 to 95 % RH (non-condensing) |
|
Storage Temperature |
-20 °C to +60 °C, 0 to 95 % RH (non-condensing) |
|
Power |
Rechargeable Li-Ion or AC adapter |
|
Battery Life |
10 hours, backlight ON, continuous operation |
|
Display |
LCD, 320 x 240, 3.5 inch (89 mm), color, high-contrast transflective with backlight and AR coating |
OFL280 Features and Applications by Model
|
|
OFL280 models |
|||
|
Features |
-100 |
-101 |
-102 |
-103 |
|
Compatible with all Noyes optical power meters and laser sources (OPM/OLS), including tone and wave ID features |
- |
- |
- |
- |
|
Compatible with Noyes optical fiber identifiers (OFI) |
- |
- |
- |
- |
|
Integrated hi-power optical power meter |
- |
- |
- |
- |
|
Integrated visual fault locator (red laser) |
- |
- |
- |
- |
|
1310 nm – OTDR, PON OTDR, laser source (CW, wave ID, tone) |
- |
- |
- |
- |
|
1550 nm – OTDR, PON OTDR, laser source (CW, wave ID, tone) |
- |
- |
- |
- |
|
1490 nm – OTDR, PON OTDR, laser source (CW, wave ID, tone) |
|
|
- |
|
|
1625 nm – OTDR, PON OTDR |
|
- |
|
- |
|
1625 nm – FTTx live fiber OTDR with filtered detector for in-service PON testing |
|
|
|
- |
|
1490/1550 nm – FTTx PON Meter (Detects and measures downstream PON power levels) |
|
|
|
- |
|
|
OFL280 models |
|||
|
Fiber Testing Applications |
-100 |
-101 |
-102 |
-103 |
|
Point-to-point cable construction and troubleshooting Fiber length, loss and ORL;splice or connection location, loss and reflectance;fault-location |
- |
- |
- |
- |
|
FTTx PON construction Fiber length, loss and ORL; splitter, splice or connection location, loss and reflectance, fault-location |
- |
- |
- |
- |
|
FTTx customer fiber troubleshooting - dark fibers (hard faults) Locate cable cuts, open splices, and bad connections |
- |
- |
- |
- |
|
FTTx customer fiber troubleshooting - live fibers (marginal faults) Locate marginal faults such as macro bends, poor splices, high-loss connections, high loss fiber sections due to water intrusion (requires live fiber OTDR) |
|
|
|
- |
|
FTTx service turn-up (commissioning) At the ONT (customer) location, verify network power levels, and if needed, locate faults on the drop cable or customer fiber |
|
|
|
- |
1. Adds ability to perform OTDR and loss tests at 1490 nm. However, testing at 1310 and 1550 nm is generally all that is needed and what is recommended to test or faultlocate
FTTx PONs during construction, in other words while they are still dark
