BRAND：Fitel

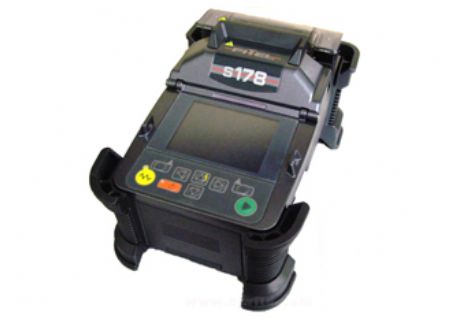

S178AV2 Has been Discontinued.Upgraded version is S179+.
Features:
1. Internal battery charging
2. Core Alignment
3. Rugged and compact
4. Fast splice 7 seconds
5. 200 cycles (splice and heat)
6. Easy software upgrade via internet
7. Auto start splicing and heat shrink oven
8. Large memory 2000 count
9. Drop resistant
10.Water resistant
11. Dust resistant
Specification:
Applicable Fiber: SM, MM, DSF, NZD, EDF, BIF/UBIF (Bend insensitive fiber)
Cladding Diameter: 80~150 um
Coating Diameter: 100~1,000 μm
Fibers Cleave Length: 5~16 mm
Average Splice Loss: SM: 0.02 dB, MM: 0.01 dB, DSF: 0.04 dB, NZD: 0.04 dB
Splice Time: 7 seconds (semi-auto mode), 9 seconds (regular mode)
Heat Time: 25 seconds *6 (S922: 40 mm Sleeve, S921: 60 mm Sleeve) (Pre-heat mode)
31 seconds *6 (S922: 40 mm Sleeve, S921: 60 mm Sleeve) (regular mode)
Splice Programs: Max. 150
Automatic Splicing Selection: SM, DSF, NZD, BIF/UBIF, MM
Heat Programs: Max. 18
Automatic Heating Start: Available
Applicable Sleeves: 20/40/60 mm
Fiber Holding: Tight holder (Loose tube applicable) or Fiber Holder System
Return Loss of Splice: 60 dB or greater
Tension Test: 1.96N
Attenuation Splice Function : Intentional high splice loss of 0.1 dB to 10 dB (0.1 dB step) can be made for an inline fixed attenuate
Fiber Image Magnification: 304X, 608X
Splice Memory: Max. 2,000
Image capture Capacity:
last 100 images to be automatically captured + Up to 24 images to be stored permanently
Monitor: 3.5” color LCD monitor
Displaying Language: 20 languages (e.g. English, Spanish, Japanese, Chinese)
Battery Capacity: Typical 80 splice/heat cycles with single battery *7; Typical 200 splice/heat cycles with 2 batteries *8
Operating Temperature: -10 to +50 °C (without excessive humidity)
Storage Temperature: -40 to +60 °C (without excessive humidity)
Humidity: 0 to +95% RH (non-condensing)
Power Source: AC Input 100 to 240 V (50/60 Hz), DC Input 11 to 17 V without any change of hardware
Standard Accessories:
1.S178A Main Body S178-A-A-0001
2. Hard Carrying Case HCC-01
3. Battery Pack S943B
4. Spare Electrodes S969
5. AC Adaptor for S178A and S958C S976A
6. Fiber Cleaver S325A/S326
7. AC Cable Cord -
8. Electrode Sharpener D5111
9. Cleaning Brush VGC-01
10. Tool case TCC-01
11. User Manual FTS-B405
