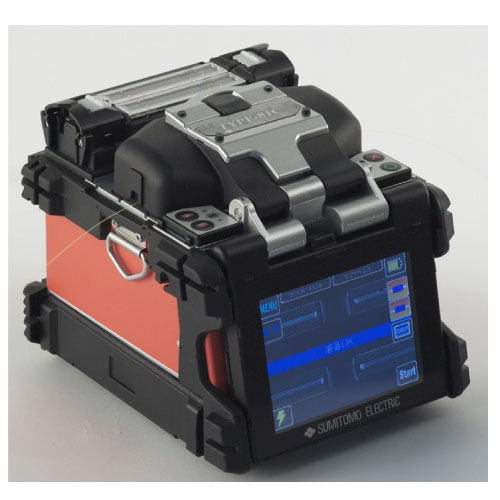

Sumitomo TYPE-81C Direct Core Fusion Splicer
Model: TYPE-81C
Brand: Sumitomo
TYPE-81C Has been Discontinued， updated version is TYPE-82C+ .
Brand: Sumitomo
TYPE-81C Has been Discontinued， updated version is TYPE-82C+ .
Information
TYPE-81C Has been Discontinued， updated version is TYPE-82C+.
Sumitomo TYPE-81C Direct Core Fusion Splicer Features:
●Downsized by 43% from conventional model
●2.1kg weight with battery
●Ultra fast splicing(7sec.)
●Ultra fast heating(28sec.)
●G.657 fiber auto splicing function
●IP52 rating and 76cm drop on 5 faces
●Automatic arc calibration
●Touch screen operation
●Universal clamp for 250μm,900μm tight and loose buffer fiber
●User selectable heater clamp operation
●User selectable heater clamp operation
●Support bi-directional splicing operation
●Equipped with onboard training vedio
●Upgrades software via internet
●Remote interactive mainnntenance via internet
Sumitomo TYPE-81C Direct Core Fusion Splicer Specification:
|
Material
|
Silica glass
|
|
|
Profile types
|
SMF (ITU-T G.652), MMF (ITU-TG.651), DSF (ITU-T G.653),NZDSF
(ITU-T G.655), BIF(ITU-T G.657), EDF |
|
|
Fiber diameter
|
Cladding diameter:80μm ~150μm, Coating diameter:100μm ~1,000μm
|
|
|
Applicable fiber or cable size
|
up to ?1,000μm
|
Drop cable(2.0* x 3.1mm) Indoor
cable (2.0 x 2.0mm)
|
|
Cleave length
|
5~16mm
|
10mm
|
|
Splice loss(typical)
|
SMF: 0.02dB, MMF: 0.01dB,DSF: 0.04dB, NZDSF: 0.04dB
|
|
|
Splicing cycle time(typical)
|
7sec. (Quick mode), 7.5sec.(SMF standard mode), 8sec.(Auto mode)
|
|
|
Heating cycle time (typical)
|
28sec.
|
|
|
Splice & Heat cycles
|
Approx.200
|
|
|
Fiber view & magnification
|
Two CMOS cameras observation, 320X (zoom:700X) for X or Y
single axis view, 88X for both X & Y dual axis view
|
|
|
Splicing programs
|
Max.300
|
|
|
Heating programs
|
Max.100
|
|
|
Functions
|
Loss estimation
Splice image capture: 64 images Splice data storage: 10,000 splice data Proof test: 1.96N (200gf) Attenuation splicing: 0.1dB to 15dB in 0.1dB increments Universal clamps for 250μm, 900μm tight & loose buffer fiber
Reversible coating clamps
Dual automatic independent heaters
User-selectable heater clamp operation
Onboard user training video
Provided Automatic arc calibration
Arc test Provided
Display of remaining Splice & Heat cycles (Battery mode)
Remote interactive maintenance
|
|
|
Size
|
Size 120(W) X 154(D) X 130(H)mm(without anti-shock rubber)
|
|
|
Weight
|
1.8kg (without battery), 2.1kg (with battery)
|
|
|
Monitor
|
4.1" touch screen color LCD
|
|
|
Terminals
|
DC output :DC12V (for JR-6)
USB port :USB 2.0 (mini-Btype)
Storage media: SD/SDHC memory card
|
|
|
Power supply
|
AC input: 100~240V, 50/60Hz (ADC-1430)
DC input:10~15V
Battery module: Li-ion 11.1V, 4,600mAh (BU-11)
|
|
|
Operating condition
|
Altitude:0~6,000m, Temperature: -10~+50 °C, Humidity:
0~95% (non-condensing), Wind velocity up to 15m/s
|
|
|
Storage condition
|
Temperature: -40~+80°C, Humidity: 0~95% (non-condensing),
Battery: -20~+30°C (long term) |
|
|
Languages
|
11
|
|
|
Electrode life
|
3,000 arc discharges
|
|
|
|||||||||||||||||||||||||||||||||||||||
|
