Brand：shinewaytech

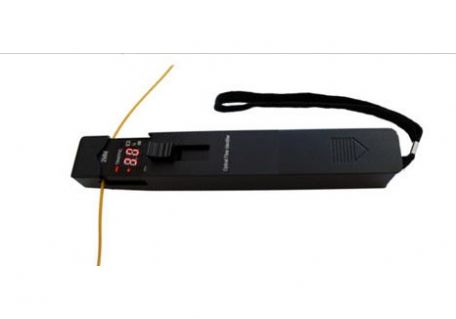

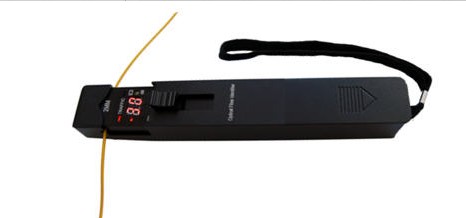

OFI-20A can detect optical signal presence, type and direction anywhere on fibers during
optical network deployment, maintenance and troubleshooting. With non-destructive macro-bend detection technology, it introduces no damage to tested fiber or interference to the
service on fiber. OFI-20A is able to identify widespectrum signals (such as signals in CATV
system) and can be used in SONET/SDH & DWDM systems tests.
OFI-20A Optical Fiber Identifier Features:
Fiber types: 250μm, 900μm, 2mm/3mmjacketed fiber
Non-destructive detection
Indication of signal presence, strength and direction
CW/MOD tones detection
Buzzer indication
Handheld & sturdy
CE, FCC certificates
OFI-20A Optical Fiber Identifier Specifications
|
Model |
OFI-20A |
|
Wavelength |
800~1700nm |
|
Detector Type |
InGaAs |
|
Signal Type |
CW, 270Hz±5%, 1kHz±5%, 2kHz±5% |
|
Display |
Signal presence / strength / direction, MOD frequency, Low battery |
|
Detect Sensitivity (1) |
≥ -50dBm |
|
Insertion Loss |
H 0.25~H 0.9: 0.1dB; H 2.0~H 2.5: 0.5dB; H 2.5~H3.0: 1.0 dB |
|
Fiber Type |
250μm bare fiber, 900μm/ 2mm/3mm jacketed fiber |
|
Battery |
9V Alkaline Battery |
|
Battery Life |
≥16 hours |
|
Operating Temperature |
-10 ~ 50℃ |
|
Storage Temperature |
-25 ~70℃ |
|
Relative Humidity |
0 ~ 95% (Non-condensing) |
|
Weight |
235g |
|
Dimensions (H×W×T) |
196×35×30mm |
Note: (1) Typical value at 1310/1550nm
* Specifications subject to change without notice
