BRAND：shinewaytech

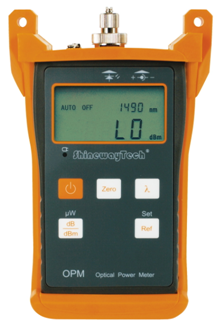

OPM-15/OPM-25 Optical Power Meter
u Applicable on singlemode/multimode fibers
u Microprocessor & linear amplifier ensure long-time accuracy
u Quick response, no warm-up
u Interchangeable connectors: FC/SC/ST
u Dual-way power supply: 9V alkaline battery/AC adapter
u Pocketsize, lightweight and damp-dust-shock proof
u Power saving: Auto-off setting
u MOD tones detection
u Display Units: dB/dBm/mW/μW/W
u PC software for data upload and reporting (OPM-25 only)
u CE, FCC Certificates
OPM-15/25 series Optical Power Meter paired with ShinewayTech SLS series Stabilized Laser Source can meet general test requirements of fiber identification, attenuation/loss measurements, continuity verification and transmission quality evaluation on singlemode and multimode fibers in LAN/WAN/CATV infrastructure. OPM-15/25 is ideal for both lab and field applications offering high quality, high stability and competitive low costs.
Specifications
|
Model |
OPM-15 |
OPM-25 |
||
|
A |
B |
A |
B |
|
|
Calibrated Wavelength (1) |
850,1300,1310,1490,1550,1625nm |
|||
|
Power Range (dBm) (2) |
-70~+10 |
-50~+27 |
-70~+10 |
-50~+27 |
|
Application Range |
Single/Multimode fibers |
|||
|
Detector Type |
InGaAs |
|||
|
Accuracy |
For power range of -70 ~ +10: ±5%±0.01nW(±0.5dB@850nm) |
|||
|
For power range of -50 ~ +27 & -55 ~ +17: ±5%±1nW(±0.5dB@850nm) |
||||
|
Resolution |
0.01dB |
|||
|
MOD Identification |
270,1K,2K Hz |
|||
|
Display Unit |
W/mW/μW/dBm/dB (REF) |
|||
|
Connector (3) |
FC (Interchangeable SC, ST) |
|||
|
Data Storage |
N/A |
3200 records |
||
|
Connectivity |
N/A |
RS-232 |
||
|
Power Supply |
9V Alkaline Battery(450mAh) / Optional 9V AC Adapter |
|||
|
Battery Life |
≥40hours |
|||
|
Power Saving |
Auto off after 5 minutes idle |
|||
|
Operating Temperature |
0oC ~ 50oC (32 ~ 122 F) |
|||
|
Storage Temperature |
-20oC ~ 70oC (-4 ~ 158 F ) |
|||
|
Relative Humidity |
0 ~ 95% (Non-condensing) |
|||
|
Weight |
300g (0.66lbs) |
|||
|
Dimensions (H×W×T) |
145×75×25mm (5.7×2.9×1inch) |
|||
Note: (1) Other wavelengths and power ranges are open for customization;
(2) For Model A at 850nm, the lower limit of measurement range is -60dBm (Model A) / -40dBm (Model B);
(3) OPM models with Ф1000μm detector are available with: FC/SC/ST/DIN/E2000/LC/Universal 1.25mm/Universal 2.5mm connectors.
* Specifications subject to change without notice
