BRAND：VIAVI
Description

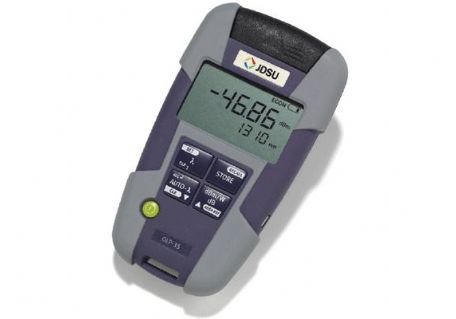

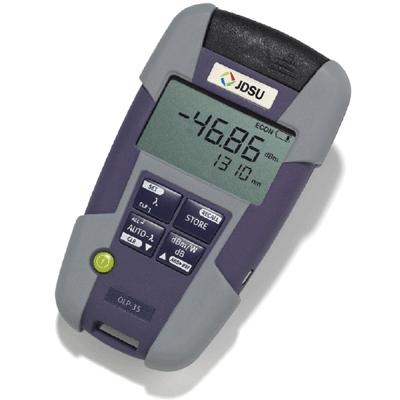

The VIAVI SmartPocket OLP-3x series next-generation small, rugged optical power meters are ideal for quickly, easily, and conveniently measuring optical power level and loss in fiber networks from the field.
The instruments’ rugged ergonomic design and large, tip display show relevant results and settings at the same time. Their intuitive one-button operation and automatic wavelength recognition is
why technicians choose SmartPocket OLPs when they test fiber. SmartPocket instruments’ unprecedented data storage capacity for saving up to 100 results and optional micro USB port
for downloading results to a PC fulfills all of your testing and reporting needs.
Feature
1). Higher power version for any CATV (with Analog RF transmission), or amplified DWDM system applications
2). Rugged and pocket-sized design
3). Large display combined with an easy-to-use interface
4). Auto-wavelength recognition function for saving test time and error-free testing
5). Internal data storage (100 results)
6). Report generation with OFS-355 software
7). Extra long battery lifetime (>200 hours)
8). 3-years calibration period
9). Universal optical interface for all 2.5 mm / 1.25 mm connector
10). Individually settable wavelengths per 1 nm step
11). Micro USB interface for power supply or data transfer
|
Specifications |
|
|
Detector type |
Filtered InGaAs |
|
Optical interface / connectors |
Universal 2.5 mm / 1.25 mm |
|
Wavelength range |
780 to 1650 nm |
|
Wavelength settings |
780 to 1600 nm, step size 1 nm |
|
Programmable wavelengths |
5 presets (customized) |
|
Calibrated wavelengths |
850, 1300, 1310, 1490, 1550, 1625 nm |
|
Power Range |
-50 to +26 dBm |
|
Display range |
-50 to +26 dBm |
|
Max. input power |
+27 dBm |
|
Absolute uncertainty |
± 0.13 sdB (± 3%) with 1.25mm UPP adapter as accessory |
|
Linearity (-5 to +45°C) |
0.06 dB (-32 to +20 dBm) |
|
Tone detection |
270 Hz, 1 kHz, 2 kHz |
|
Auto λ mode |
Yes |
|
Multi λ mode |
TwinTest / serial TripleTest |
|
Internal memory |
100 results |
|
Data read out |
micro USB for PC transfer and AC power |
|
Operating temperature |
-10 to +55°C / 14 to 131°F |
