BRAND：shinewaytech
u Applicable on singlemode/multimode fibers
u Unique Output Power Display
u CW/MOD tones output
u Quick response, no warm-up
u Interchangeable connectors: FC/SC/ST
u 9V alkaline battery/AC adapter
u Power saving: Auto-off setting
u Pocketsize, lightweight and damp-dust-shock proof
u CE, FCC, FDA certificates

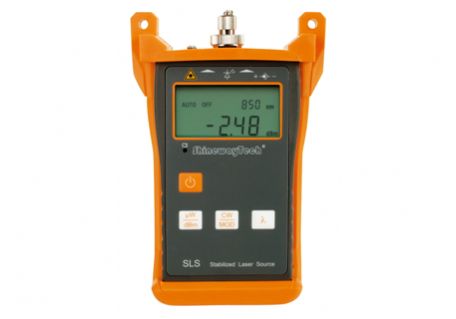

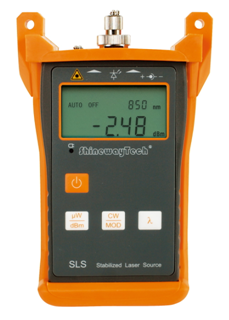

SLS-2X series Stabilized Laser Source paired with ShinewayTech optical power meters can meet the test requirements of fiber identification, attenuation/loss measurements, continuity verification and transmission quality evaluation on singlemode and multimode fibers in LAN/WAN/CATV systems, offering high quality, stability and competitive costs.
Specifications
|
Model |
SLS-21 |
SLS-25 |
|||||
|
A-07 |
A-00 |
B-07 |
A-07 |
A-00 |
B-00 |
C-00 |
|
|
Wavelength (±20nm) |
1310/1550 |
850/1300 |
650/1310/1550 |
1310/ |
1310/ |
||
|
1550/ |
1490/ |
||||||
|
1625 |
1550 |
||||||
|
Output Power |
≥-7 |
≥0 |
≥-7 |
≥-7 @1310/1550nm ≥-3@650nm |
≥0 @1310/1550nm ≥-3@650nm |
≥0 |
|
|
Display |
LCD |
||||||
|
Output Mode |
CW, 270Hz,1KHz, 2KHz |
||||||
|
Emitter Type |
FP-LD |
||||||
|
Connector Type |
FC/PC(Interchangeable SC,ST) |
||||||
|
Spectrum Width |
≤ 5nm |
||||||
|
Stability |
±0.05dB/15min, ±0.10dB/8hr@ 1310/1550; ±0.15dB/8hr@ 850/1300nm |
||||||
|
Fiber Type |
Multi/Single Mode Fiber |
||||||
|
Auto Off |
After 5 minutes idle |
||||||
|
Power Supply |
9V Alkaline battery(450mAh) / optional 9V AC adapter |
||||||
|
Battery Life |
≥20hours with 9V Alkaline |
||||||
|
Operating Temperature |
0°C to 50°C |
||||||
|
Storage Temperature |
-20°C to 70°C |
||||||
|
Relative Humidity |
0 ~ 95% (Non-condensing) |
||||||
|
Weight |
300g (0.66lbs) |
||||||
|
Dimensions (H×W×T) |
145×75×25mm (5.7×2.9×1inch) |
||||||
* Specifications subject to change without notice
