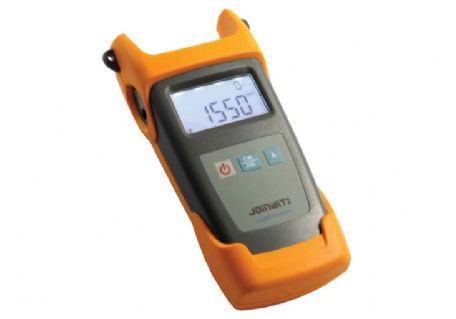

OLS-502 Optical Light Source Features
· Provides 1~6 wavelengths output which can be optional according to customers’ needs
· CW, 2Hz modulation output at 650nm, and CW, 270Hz,1KHz,2KHz modulation output at other wavelengths.
· High stability of the output power
· Stable output wavelength
· Backlight LCD display supports night operation
· Low battery power indication
OLS-502 Optical Light Source Specifications
|
Type |
OLS-502 |
|||
|
MODEL |
OLS-502V |
OLS-502-SM |
OLS-502-MM |
OLS-502Q1 |
|
Wavelengths(nm) |
650 |
1310/1550 |
850/1300 |
850/1300/1310/1550 |
|
Emitter Type |
FP-LD,LED |
|||
|
Typical Output Power(dBm) |
0@650nm / -7 @1310nm,1550nm, -20dBm for LED |
|||
|
Spectral Width(nm) |
≤10 |
|||
|
Output Stability |
±0.05dB/15mins; ±0.1dB/ 8hours |
|||
|
Modulation Frequencies |
CW.2Hz@650nm / CW,270Hz,1KHz,2KHz@1310nm,1550nm CW,270Hz,1KHz,2KHz |
|||
|
Optical Connector |
FC/PC(Other type adapters can be required) |
|||
|
Power Supply |
Alkaline Battery(3 AA 1.5V batteries); AC Adaptor(9V) |
|||
|
Battery Operating Time(hour) |
45 |
|||
|
Operating Temperature(℃) |
-10~+60 |
|||
|
Storage Temperature(℃) |
-25~+70 |
|||
|
Dimension |
23.5*16*8cm |
|||
|
Weight |
0.7kg |
|||
|
OLS-502 Optical Light Source Recommendation |
||||
|
OLS-502 Handheld Light Source is designed for optimal use with OPM-502 Optical Power Meter for measuring optical loss on both single mode and multimode fiber cable. |
||||
