BRAND：EXFO

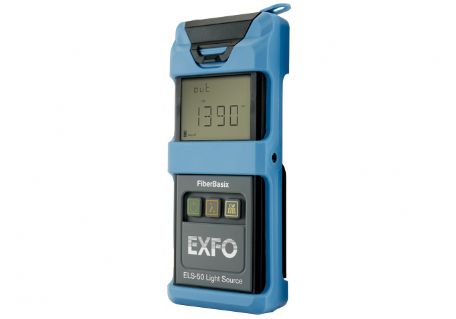

EXFO ELS-50 Series Light Source Features:
Rugged design
Excellent power stability for reliable loss measurements
Interchangeable connector adapters
Up to 60 hours of battery life
Tone generation for fiber identify cation
APPLICATIONS:
Telco/CATV and FTTH models; dual and triple wavelenghts
Enterprise/LAN models; singlemode and multimode
|
SPECIFICATIONS |
|
|
|
|
MODEL |
23BL |
235BL |
12C |
|
Central wavelength (nm) |
1310 ± 20 |
1310 ± 20 |
850 ± 25 |
|
Spectral width (nm) |
≤5 |
≤5 |
≥40/120 |
|
Output power (dBm) |
≥–5 |
≥–5 |
≥–24(50/125 um) |
|
Power stability (dB) |
±0.10 |
±0.10 |
±0.10 |
|
Battery life (hours) |
60 |
60 |
45 |
|
Tone generation (Hz) |
270, 1 k, 2 k |
270, 1 k, 2 k |
270, 1 k, 2 k |
|
Warranty (year) |
1 |
1 |
1 |
|
GENERAL SPECIFICATIONS |
|
|
|
|
Size (H x W x D) |
189 mm x 78 mm x 37 mm (7 7/16 in x 3 1/16 in x 1 7/16 in) |
||
|
Weight |
0.4 kg (0.9 Ib) |
||
|
Temperature operating |
-10C to 50C (14F to 122F) |
||
|
storage |
- 40C to 70C (-40F to 158F) |
||
|
Relative humidity |
0 % to 95 % non-condensing |
||
|
STANDARD ACCESSORIES |
|
1.Soft pouch |
|
2.LSA-89 FC connector adapter |
|
3.quick reference sticker in 5 languages, |
|
4.Certificate of Compliance |
