BRAND：EXFO
The Pocket Pal is the easiest way to identify fibers from end to end and locate polished connector endfaces. Its red laser shines through most yellow-jacketed fibers to help you pinpoint breaks, bends, faulty connectors, splices and other causes of signal loss. It has a reach of up to 5 km*.

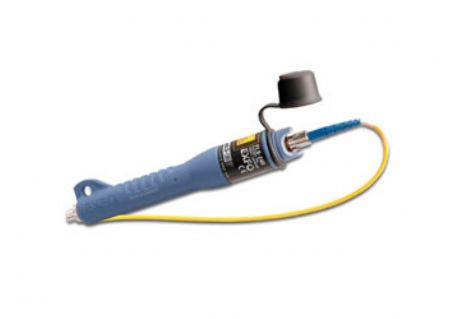

The convenient FLS241 locates faults visually by creating a bright red glow at the exact location of the fault on singlemode or multimode fibers.
Robust Design
Due to its small size, light weight and simple but proven design, the Pocket Pal can accompany you anywhere. In your pocket or belt pouch, carry your FLS-240 to the most demanding environments. To ensure ruggedness, it features rubber seals, a fully enclosed laser head and a long-lasting On/Off switch. It has been tested to provide reliable
operation under intensive use and harsh conditions.
Cost-Effective
The Pocket Pal's extremely high efficiency guarantees prolonged operation with two standard AAA alkaline batteries, typically providing 50 hours of uninterrupted operation.
Priced to accommodate the tightest budgets, the FLS-240 Pocket Pal is a truly affordable way to locate faults in OTDR dead zones. Its effectiveness justifies purchasing one for just about every fiber technician.
|
Specification |
|
|
Operation (Hz) |
2 to 4 |
|
Wavelength (nm) |
630 to 645 |
|
Emitter type |
Laser |
|
Power output (typical) (mW) |
0.6 |
|
Distance range1 (typical) (km) |
5 |
|
Operation mode |
Pulsed and CW |
|
GENERAL SPECIFICATIONS |
|
|
Power supply |
2 AAA alkaline batteries |
|
Laser class |
2 |
|
Battery life (h) flashing |
50 |
|
Length |
17.5 cm |
|
Maximum diameter |
2.5 cm |
|
Weight |
empty 80 g, with batteries 120 g |
|
Temperature |
operating -10 C to 50 C, storage -30 C to 60 C |
STANDARD ACCESSORIES
User guide, two AAA alkaline batteries, belt clip, and Certificate of Compliance.
