BRAND：Yokogawa

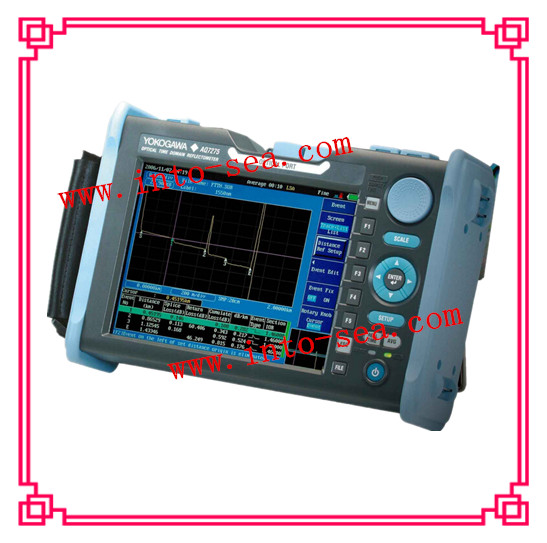

The AQ7275 Optical Time Reflectometer (OTDR) is ideal for use in a wide variety of optical fiber installation and maintenance applications. Increased efficiency and a quick 10-second startup help to minimize operations time and increase battery life. Yokogawa offers the world's only mini-OTDR with a built in dummy fiber option which is very effective at determining loss across the first connector and to determining return loss. Many OTDR users invest hundreds of dollars for handheld dummy fibers (also called launch reels) that are easily damaged, lost or stolen thereby increasing operations costs. Enhanced version of AQ7270 Series
Features:
_ Improved Waveform Quality
_ Increased Dynamic range
_ Wider Range of Optional Functions
_ Short Dead Zone (0.8 m)
Typical Model
|
SMF |
No. of Wavelengths |
Wavelength |
Dynamic Range |
Model |
Descriptions |
|
1 |
1650nm |
30dB |
735031-New |
wavelength of 1650nm including |
|
|
2 |
1310/1550nm |
34/32dB |
735032 |
Standard model for installation and maintenance |
|
|
2 |
1310/1550nm |
40/38dB |
735033 |
Standard model for installation and maintenance |
|
|
2 |
1310/1550nm |
43/41dB 45/43dB(typ.) |
735034-New |
High dynamic range model |
|
|
3 |
1310/1490/1550nm |
34/30/32dB |
735035-New |
PON system, supporting 1490nm |
|
|
3 |
1310/1550/1625nm |
40/38/33dB |
735036-New |
wavelength of 1625nm including 1310/1550nm |
|
|
3 |
1310/1550/1650nm |
40/38/30dB |
735037 |
wavelength of 1650nm including 1310/1550nm |
|
|
3 |
1310/1550/1625nm |
40/38/36dB |
735038-New |
wavelength of 1625nm |
|
|
MMF |
4 |
850/1300 nm |
22.5/24DB
21/22.5dB(50GI) |
735041-New |
both multimode and single mode fiber. |
Specifications
|
Horizontal Axis Parameters |
|
|
Sampling resolution |
5 cm, 10 cm, 20 cm, 50 cm, 1 m, 2 m, 4 m, 8 m, 16 m, 32 m |
|
Readout resolution |
R 1 cm (Min.) |
|
Number of sampled data |
Up to 50,000 points |
|
Group refractive index |
1.30000 to 1.79999 (in 0.00001 steps) |
|
Unit of distance |
km, kf, or miles |
|
Distance measurement accuracy |
Offset error: ?1 m |
|
Vertical Axis Parameters |
|
|
Vertical axis scale |
0.2 dB/div, 0.5 dB/div, 1 dB/div,2 dB/div, 5 dB/div, 7.5 dB/div |
|
Readout resolution |
0.001 dB (Min.) |
|
Loss measurement accuracy |
0.05 dB/dB |
|
* When the measuring loss is 1dB or less, the accuracy is within ?0.05dB |
|
|
OTDR Measurement Function |
|
|
Distance measurement |
Displays up to eight digits of the relative one-way distance between two arbitrary points on the trace. |
|
Loss measurement |
Displays one-way loss in steps o, f 0.001 dB to a maximum of 5 digits. way loss, loss per unit length, and splice loss between any two given points on the waveform |
|
Return loss measurement |
Measures return loss and total return loss of a fiber cable or between two arbitrary points on the trace. |
|
OTDR Analysis Functions |
|
|
Analysis functions |
Multi trace analysis, 2 way trace analysis, differential trace analysis, section analysis |
|
Internal Memory |
|
|
Memory capacity |
1000 waveforms or more |
|
Display |
|
|
Display |
8.4-inch color TFT LCD |
|
Total number of pixels |
640 (horizontal) * 480 (vertical) |
|
External Interface |
|
|
USB |
USB1.1 Type A and Type B, one each |
|
Optical I/O port |
|
|
Connector type |
SC (fixed), FC (fixed), SC universal adapter, |
|
Number of port |
1 or 2* |
|
General Specifications |
|
|
Laser safety standards |
class 1 M (IEC60825-1:2001) |
|
Safety standard |
EN61010-1 |
|
Emission |
EN61326 Class A |
|
Immunity |
EN61326 Annex A |
|
Operating environment |
0 to 45°C |
|
Temperature |
(0 to 35 °C when charging the battery) |
|
Humidity |
85% RH or less (no condensation) |
|
Storage temperature |
-20 to 60 °C |
|
Battery |
Operation time 6 hours*1 |
|
AC adapter |
|
|
Rated supply voltage |
100 to 240 VAC |
|
Rated supply frequency |
50 to 60 Hz |
|
Power consumption |
Max 70 W (when battery charging, and optional printer printing) |
|
Dimensions |
(W) 287 * (H) 197 * (D) 85 mm (not including projections or options) |
|
Weight |
Approx. 2.8 kg (not including options) |
