BRAND:INTOSEA

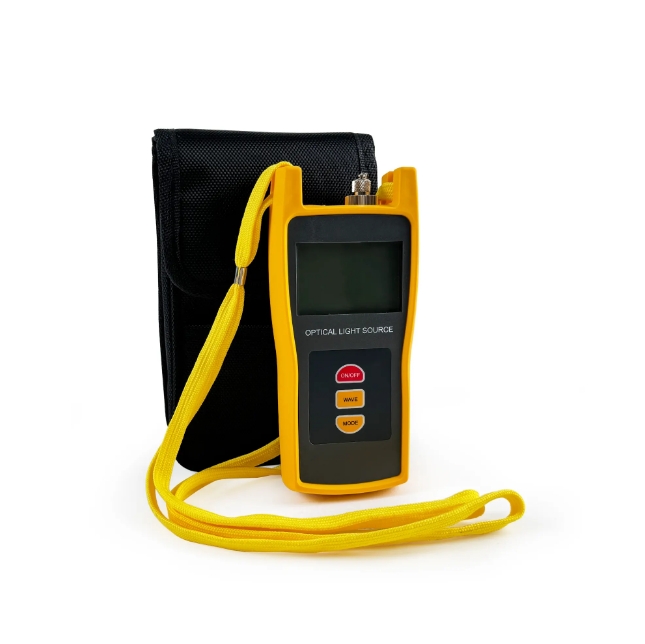

OLS-302 Optical Light Source Features
· Provides 1~4 output wavelengths which can be optional according to customer’s needs
· CW, 2Hz modulation output at 650nm, and CW, 270Hz,1KHz,2KHz modulation output at other wavelengths.
· High stability of the output power
· Stable output wavelength
· Backlight LCD display supports night operation
· Compact size and decent appearance
· Large LCD, easy operation
· Alternative 10 minutes Auto-off function conserving battery life
OLS-302 Optical Light Source Specifications
|
Type |
OLS-302 |
||||
|
MODEL |
OLS-302V |
OLS-302 -SM |
OLS-302 -MM |
OLS-302 -Q1 |
|
|
Wavelengths(nm) |
650 |
1310/1550 |
850/1300 |
850/1300/1310/1550 |
|
|
Emitter Type |
FP-LD,LED or others please specify |
||||
|
Typical Output Power (dBm) |
0 |
-7dBm for LD, -20dBm for LED |
|||
|
Spectral Width(nm) |
≤10 |
||||
|
Output Stability |
±0.05dB/15mins; ±0.1dB/ 8hours |
||||
|
Modulation Frequencies |
CW,2Hz |
CW,270Hz,1KHz,2KHz |
|||
|
Optical Connector |
FC/ universal adaptor |
FC/PC |
|||
|
Power Supply |
Alkaline Battery(3 AA 1.5V batteries) |
||||
|
Battery Operating Time(hour) |
45 |
||||
|
Operating Temperature(℃) |
-10~+60 |
||||
|
Storage Temperature |
-25~+70(℃) |
||||
|
Dimension |
23.5*16*8cm |
||||
|
Weight |
0.6kg |
||||
|
Joinwit Recommendation |
|||||
|
OLS-302 Light Source is designed for optimal use with OPM-302 Optical Power Meter for measuring optical loss on both single mode and multi mode fiber cable. |
|||||
