BRAND：JILONG
Specifications

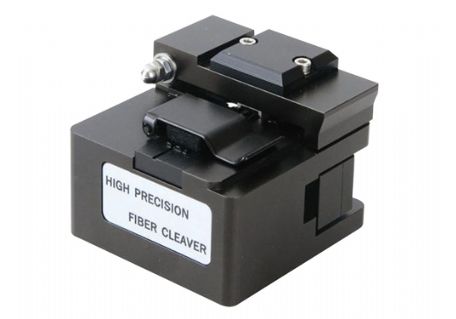

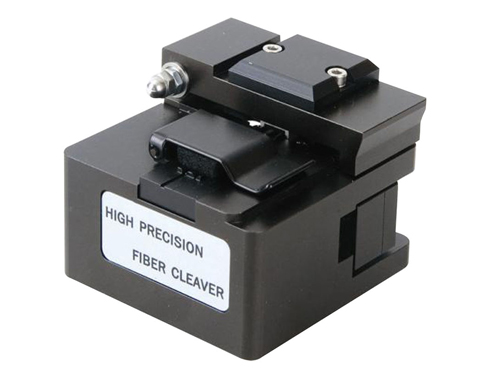

KL-21F Fiber Optic Cleaver
1.Replaceable blade
2.High precision
3.Simple operation&Easy maintenance
4.50,000 fiber cleaver
Features:
1.High cutting quality.
2.Durable design.
3.Replaceable blade.
4.Simple operation and Easy maintenance.
5.Leather carrying case
6.One-year warranty
Specifications:
|
KL-21F Fiber Optic Cleaver |
|
|
Fiber type |
Single fiber, ribbon fiber |
|
Clad diameter |
125um |
|
Coating diameter |
250~900um |
|
Cleave angle capability |
<0.5° |
|
Cleave length |
5~20mm |
|
Blade lifetime |
36,000 fiber cleaves |
|
Dimension |
59mm(W) x 55mm(D) x 49mm(H) |
|
Weight |
258g |
Using Guide:
· Read this description, before using Cleaver and keep description with Cleaver.
· Using Cleaver, please be cautious of the following particulars and prevent your body and property from harm and use carefully and usefully.
· Keep Cleaver away from water.
· Place Cleaver away from humid and dusty place.
· High temperature causes transforming, so keep it in normal temperature.
· Be careful with serious impact on it.
· Be sure that the stripped fiber length should be at least 12mm or longer.
· Clean the Cutting Edge Rubber Pad regularly with alcohol. Try not to use acetone or corrosive solvent when you clean the rubber pad.
· Keep the fiber holder clean to ensure no dust in it.
