BRAND：Fujikura
Features:
· Rugged construction providing shock, dust and moisture resistance
· Dual monitor position with automatic image orientation
· Automatic arc calibration and fiber identification
· User-selectable fiber clamping method sheath clamp or fiber holders
· Auto-start tube heater feature
· Color LCD display with anti-reflective coating for excellent visibility in bright sunlight
· Simultaneous battery charge and splicer operation
· Long life battery (up to 160 splice/heat cycles per charge)
· Detachable work table incorporated into the transit case
· Data and video download software and splicer upgrade software included; software upgrades through PC application via the internet
· Data and video download software and splicer upgrade software included; software upgrades through PC application via the internet
· Green friendly - RoHS & WEEE compliant
Specification:
|
Applicable Fibers |
Single-mode (ITU-T G.652), Multimode (ITU-T G.651), DS (ITU -T G.653), NZDS (ITU-T G.655) |
|
Cladding Diameter |
80nm to150nm |
|
Coating Diameter |
100nm to 1,000nm |
|
Fiber Cleave Length |
8 to 16mm with 250nm coating diameter, 16mm with 900nm coating diameter |
|
Typical Average Splice Loss |
0.02dB with SM, 0.01dB with MM,0.04dB with DS, 0.04dB with NZDS. Measured by cut-back method relevant to ITU-T and IEC standards |
|
Splicing Time |
Typical 9 seconds with standard single-mode fiber |
|
Arc Calibration Method |
Automatic, real-time and by using results of previous splice when in AUTO mode, manual arc calibration function available |
|
Splicing Modes |
100 preset and user programmable modes |
|
Splice Loss Estimate |
Based upon dual camera core alignment data |
|
Fiber Display |
X or Y, or both X and Y simultaneously. Front or rear monitor display options with automated image orientation |
|
Magnification |
300X for single X or Y view, or 187X for X and Y view |
|
Viewing Method |
Dual cameras with 4.1 inch TFT color LCD monitor |
|
Operating Condition |
0 to 5,000m above sea level, 0 to 95%RH and -10 to 50C respectively |
|
Mechanical Proof Test |
1.96 to 2.25N |
|
Tube Heater |
Built-in tube heater with 30 heating modes; auto-start function |
|
Tube Heating Time |
Typical 30 seconds with FP-03 sleeve, 35 seconds with FP3 (40), 35-55 seconds with Fujikura micro sleeves |
|
Protection Sleeve Length |
60mm, 40mm, micro |
|
Splice/Heat Cycles with Battery |
Typical 160 cycles with power save functions activated |
|
Power Supply: |
Auto voltage selection from 100 to 240V AC or 10 to 15V DC with ADC-11, 13.2V DC with BTR-08 battery |
|
Terminals |
USB 1.1 (USB-B type) for PC communication. M ini-DIN (6-pin) for HJS-02/03 and SH-8 tube heater |
|
Wind Protection |
Maximum wind velocity of 15m/s. (34 mph) |
|
Dimensions |
136W x 161D x 143H (mm) / 5.3W x 6.3D x 5.6H (inches) |
|
Weight |
2.3 kg (5.1 lbs) with AC adapter ADC-11; 2.7kg (5.9 lbs) with BTR-08 battery |

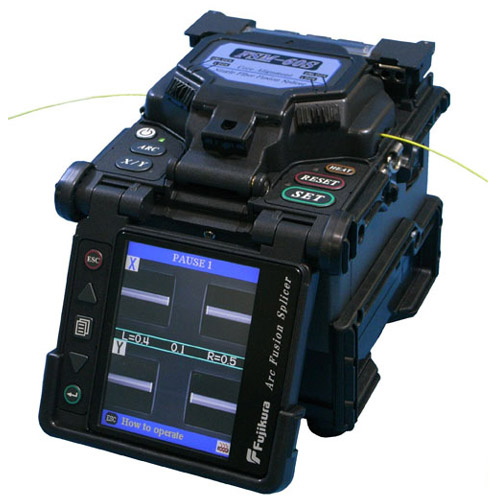

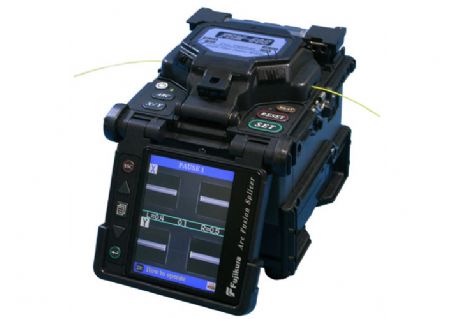

FSM-60S Fusion Splicer Kit Includes:
· CT30A Cleaver
· ADC-13 AC Adapter
· ACC-14 AC Cord
· Spare Electrodes (pair)
· Sheath Clamp
· USB Cable
· Splicer Carrying Strap
· Quick Reference Guide
· Video Instruction Manual
· JP-05 Splice Sleeve Cooling Tray
· Transit Case with Carrying Strap
